GitHub Heatmap

English | 简体中文

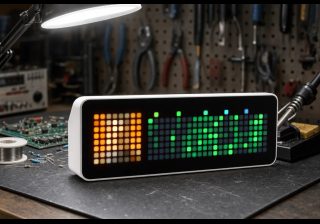

A GitHub contribution heatmap for AWTRIX NG, rendered on the 32×8 LED panel.

AWTRIX app ──▶ Cloudflare Worker ──GraphQL──▶ GitHub API
    ▲                 │
    └── 256 pixels ◀──┘    JSON array of 0xRRGGBB ints, 32×8 row-major

Rendering conventions: the panel shows the last 32 weeks; rows 1–7 map Sunday through Saturday, the rightmost column is the current week, and row 0 carries the month marker. With Show Avatar on, the leftmost 8 columns render the user's 8×8 avatar.

1. Create a GitHub token

The worker only reads public data, so a classic personal access token with the read:user scope is all it needs.

1. Create one at https://github.com/settings/tokens/new.
2. Name it and tick read:user.
3. Generate and store it somewhere safe. You will need it in step 2.

2. Deploy the worker

(Recommended) Deploy with the button

Click the button to deploy the worker.

Add a secret named GITHUB_TOKEN and paste the token from step 1.

Manual Deployment

To deploy manually instead, you need to clone the repo and install wrangler:

cd worker
wrangler secret put GITHUB_TOKEN  # paste the token from step 1
wrangler deploy

You will see a URL like https://awtrixng-github-heatmap-worker.xxx.workers.dev. Test it with your GitHub username:

curl "https://awtrixng-github-heatmap-worker.xxx.workers.dev/?user=<github-username>"
# [0,934953,27954,934953,...]  exactly 256 integers

You can also bind the worker to a custom domain instead of *.workers.dev.

3. (Optional) Protect the worker with Cloudflare Access

Left open, anyone with the URL can query arbitrary accounts and burn your API quota. Access control is recommended.

1. Create a new service token: Zero Trust - Access Controls - Service Credentials - Create Service Token.
   Note the Client ID and Client Secret (the secret is shown only once).
2. Create a new Access policy: Zero Trust - Access Controls - Policies - Add a Policy.
   • Include = Service Token - the token created above
   • Action = Service Auth
3. Add an application: Zero Trust - Access Controls - Applications - Add an Application - Self-hosted - Workers.
   • Destinations/Workers/Scope = awtrixng-github-heatmap-worker
   • Access Policies = the policy created above

Test the worker again, you will see the Cloudflare Access error page:

curl "https://<worker-url>/?user=<github-username>"
# <!doctype html>
# <html>
#   <head>
#     <title>Error ・ Cloudflare Access</title>
# ...

You need to pass the service token in the CF-Access-Client-Id and CF-Access-Client-Secret headers:

curl "https://<worker-url>/?user=<github-username>" \
     -H "CF-Access-Client-Id: <client-id>" \
     -H "CF-Access-Client-Secret: <client-secret>"
# [0,934953,27954,934953,...]  exactly 256 integers

4. Install and configure the app

The app is published on AWTRIX Flows — install it from there, or visit the AWTRIX NG web interface, go to Scripts and paste github-heatmap.ax into a new script. Configure it with the following settings:

Behavior notes: the select button forces an immediate refresh; failed requests back off exponentially starting at 30 s, capped at every; until the first fetch succeeds the panel shows ..., which becomes an orange ? once a fetch has failed.
